Input & Output Frequencies

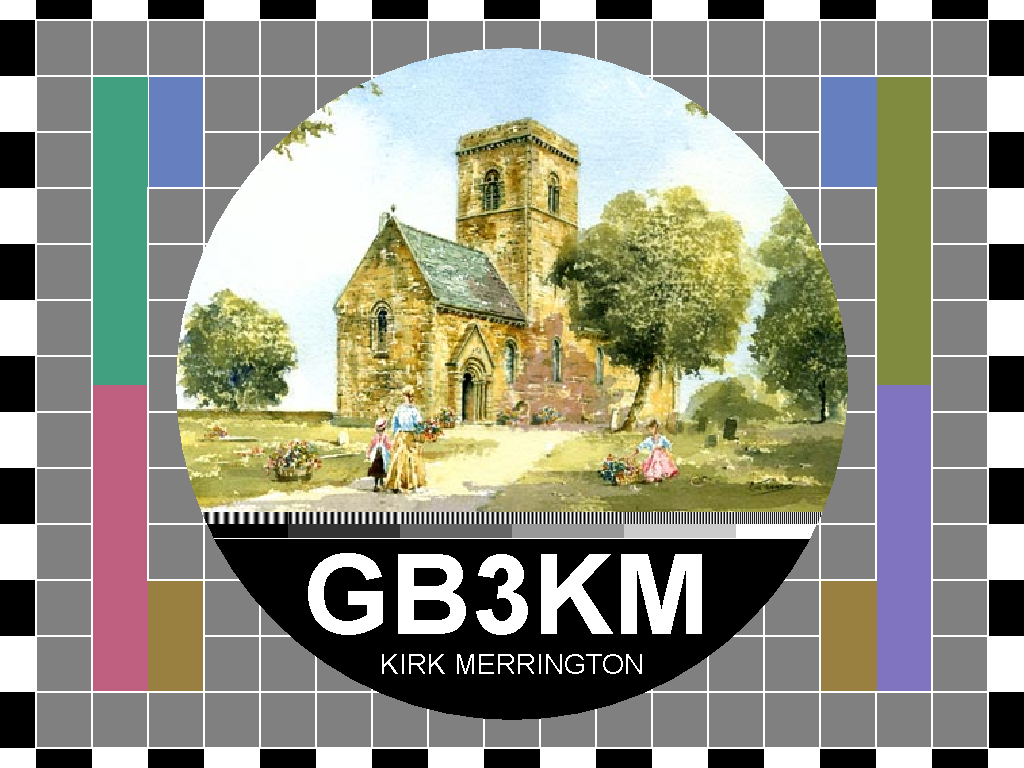

GB3KM is a full duplex multi user repeater catering for both analogue FM ATV and digital DVB-S/S2. Its located in my shack IO94EQ82 200masl and engineered jointly by myself Terry G1LPS (Keeper) and Rob M0DTS (Engineer Programmer)

The 4 Outputs are:

(23cm) 1304MHz DVB-S2 H264 SR2000 3/4FEC

(13cm) 2440MHz FM TV 6MHZ sound carrier (maintenance)

(9cm) 3406MHz DVB-S MPEG2 SR2000 3/4FEC

(3cm) 10065MHz FM ATV 6MHz sound carrier (maintenance)

The Inputs are:

(70cm) 437.5 MHz SR333 / 500 /1000 DVB-S DVB-S2 H264 auto FEC

(23cm) 1280MHz FM (maintenance)& 1249MHz Digital. It will accept DVB-S DVB-S2 any format & auto FEC SR333 /1000 /4000

(13cm) 2328MHz Digital It will accept DVB-S DVB-S2 any format & auto FEC SR333 /1000 /2000

(6cm) 5665MHz FM ATV 6.5MHz sound carrrier digital possible on request (maintenance)

(3cm) 10315MHz FM ATV 6MHz sound carrier (maintenance)
